Build instructions

Source code

The source code for the reference designs is managed on this Github repository:

• https://github.com/fpgadeveloper/zynqmp-hailo-ai

Note that the repository contains submodules, so it is essential to use the --recursive option when cloning:

git clone --recursive https://github.com/fpgadeveloper/zynqmp-hailo-ai.git

License requirements

The designs for all of the target boards can be built with the Vivado ML Standard Edition without a license.

Additionally, some designs use IP cores that are licensed separately from the Vivado edition itself (for example: TEMAC, XXV Ethernet, HDMI). The IP License column in the tables below indicates the designs that require such a license to generate a bitstream; evaluation licenses are generally available from AMD for testing.

Target designs

This repo contains several designs that target the various supported development boards and their FMC connectors. The table below lists the target design name, the camera ports supported by the design and the FMC connector on which to connect the [RPi Camera FMC].

Note that there are two target designs for the [ZCU106] board: zcu106 and zcu106_hpc0, and the differences are explained in the table below. All target designs except zcu106 require the [M.2 M-key Stack FMC] as the M.2 adapter for the Hailo-8, with the [RPi Camera FMC] stacked on top of it.

Zynq UltraScale+ designs

Target board	Target design	Cameras	M.2 Active Slots	FMC Slot	VCU	Stack Design	Vivado Edition	IP License
ZCU104	zcu104	4	1	LPC	✅	✅	Standard 🆓	-
ZCU106	zcu106	4	1	HPC0+HPC1	✅	❌	Standard 🆓	-
ZCU106	zcu106_hpc0	4	2	HPC0	✅	✅	Standard 🆓	-
PYNQ-ZU	pynqzu	2	1	LPC	❌	✅	Standard 🆓	-
UltraZed-EV Carrier	uzev	4	2	HPC	✅	✅	Standard 🆓	-

Notes:

1. The Vivado Edition column indicates which designs are supported by the Vivado Standard Edition, the FREE edition which can be used without a license. Vivado Enterprise Edition requires a license however a 30-day evaluation license is available from the AMD Xilinx Licensing site.

2. The Stack Designs use the [M.2 M-key Stack FMC] with the [RPi Camera FMC] stacked on top of it. The non-stack designs use the [FPGA Drive FMC Gen4] on one FMC connector, and the [RPi Camera FMC] on another.

3. The zcu106 target design uses the [FPGA Drive FMC Gen4] as the M.2 adapter for the Hailo-8. In that design, the [FPGA Drive FMC Gen4] connects to HPC1 while the [RPi Camera FMC] connects to the HPC0 connector.

4. The pynqzu target design has video pipelines for only 2 cameras (CAM1 and CAM2 as labelled on the RPi Camera FMC). This is due to the resource limitations of the device on this board.

5. The zcu106_hpc0 and uzev target designs have support for 2x M.2 modules. To use the Hailo demo scripts, at least one of these modules must be the [Hailo-8 M.2 AI Acceleration Module]. The second slot can be used for a second Hailo module, or an NVMe SSD for storage.

Stack designs

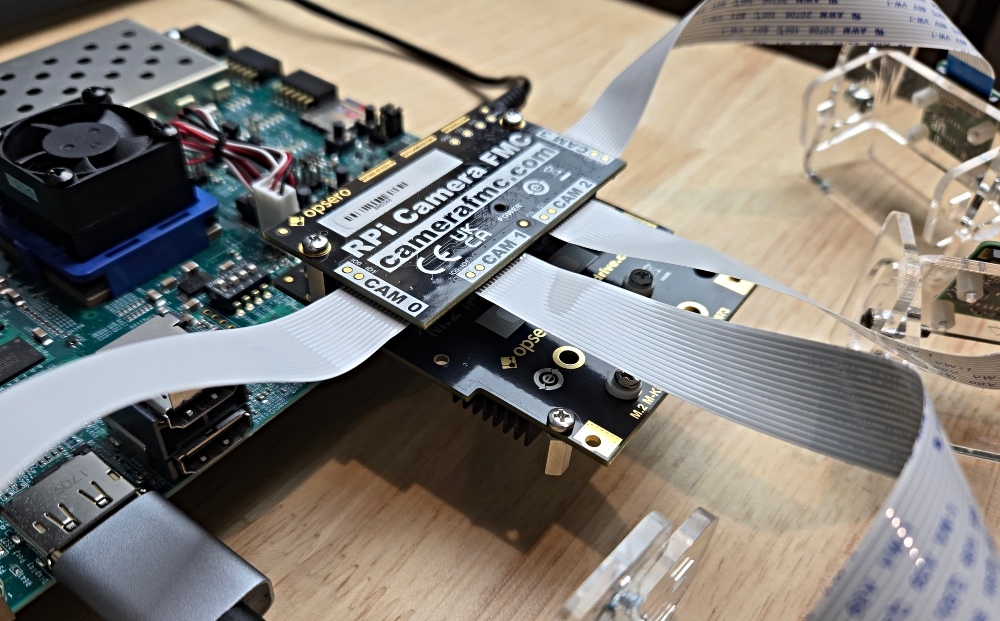

The “stack” designs are intended to be used with the [RPi Camera FMC] stacked on top of the [M.2 M-key Stack FMC] as shown in the image below. This setup allows both the [RPi Camera FMC] and the M.2 adapter to be connected to the carrier board through a single FMC connector.

Non-stack design

The single non-stack design for [ZCU106] (target design zcu106) is intended to be used with the [RPi Camera FMC] on connector HPC0 and the [FPGA Drive FMC Gen4] on connector HPC1 as shown in the image below.

Cross-platform build runner

All builds are driven by the build.py runner at the root of the repository, on both Windows and Linux — the build instructions are the same for the two operating systems. Each command builds whatever it depends on automatically, skips anything that is already built, and locates the AMD tools itself, so there is no need to source the settings scripts beforehand.

On Linux and on Windows (git bash), commands are run with the build.sh shim, which finds a suitable Python 3 automatically (including the interpreter bundled with the AMD tools). Windows users who prefer not to use git bash can run the same commands from Command Prompt or PowerShell using build.bat instead — the commands and arguments are otherwise identical, for example build.bat xsa --target <target>.

This repository uses git submodules: clone it with --recurse-submodules, or run git submodule update --init in an existing clone, before building.

To see the available targets and the state of a build:

./build.sh list                       # list the targets and their attributes
./build.sh status --target <target>   # show the per-stage artifact state
./build.sh clean --target <target>    # delete a target's generated outputs

Note

The embedded Linux images (PetaLinux) can only be built on a native Linux machine; everything else builds on Windows too. On Windows, the runner refuses the Linux-only stages up front and prints the exact command to run on the Linux machine.

Attention

The legacy make interface described in previous versions of this documentation still works on Linux — each Makefile is now a thin wrapper around build.sh — but it is deprecated and will be removed at the next version update.

Build Vivado project

This single command creates the Vivado project, generates the bitstream and exports the hardware to an XSA file:

./build.sh xsa --target <target>

Valid targets are: zcu104, zcu106, zcu106_hpc0, pynqzu, uzev.

The HLS IP on which the design depends is generated automatically before the project is created. It can also be generated on its own with ./build.sh ip --target <target>.

If you want the Vivado project and block design without generating a bitstream — for example, to explore or modify the design in the Vivado GUI — run ./build.sh project --target <target> instead, then open the project from Vivado/<target>/.

Build PetaLinux

The PetaLinux build requires a native Linux machine (one of the supported Linux distributions) with PetaLinux Tools 2025.2 installed. The runner locates and sources the PetaLinux settings.sh itself, and builds the Vivado XSA first if it does not already exist:

./build.sh petalinux --target <target>

Valid targets for PetaLinux are: zcu104, zcu106, zcu106_hpc0, pynqzu, uzev.

The output products are written to PetaLinux/<target>/images/linux/.

PetaLinux offline build

If you need to build the PetaLinux projects offline (without an internet connection), you can follow these instructions.

1. Download the sstate-cache artefacts from the Xilinx downloads site (the same page where you downloaded PetaLinux tools). There are four of them:

   • aarch64 sstate-cache (for ZynqMP designs)

   • arm sstate-cache (for Zynq designs)

   • microblaze sstate-cache (for Microblaze designs)

   • Downloads (for all designs)

2. Extract the contents of those files to a single location on your hard drive, for this example we’ll say /home/user/petalinux-sstate. That should leave you with the following directory structure:

   /home/user/petalinux-sstate
                             +---  aarch64
                             +---  arm
                             +---  downloads
                             +---  microblaze


3. Create a text file called offline.txt in the PetaLinux directory of the project repository. The file should contain a single line of text specifying the path where you extracted the sstate-cache files. In this example, the contents of the file would be:

   /home/user/petalinux-sstate


   It is important that the file contain only one line and that the path is written with NO TRAILING FORWARD SLASH.

The PetaLinux builds will then be configured for offline build.

Build everything

This builds everything that the target supports — the Vivado project and XSA and the PetaLinux image — and gathers the boot images into bootimages/*.zip:

./build.sh all --target <target>
./build.sh all --target all      # every target in the repo

On Windows, all builds everything that the host can build and reports the Linux-only stages as BLOCKED rather than failing.

Build issue and workaround

When building the PetaLinux project, you might experience one or more of the following error messages:

ERROR: hailortcli-4.23.0-r0 do_configure: ExecutionError('/home/user/zynqmp-hailo-ai/PetaLinux/zcu106/build/tmp/work/cortexa72-cortexa53-xilinx-linux/hailortcli/4.23.0-r0/temp/run.do_configure.2849196', 1, None, None)
ERROR: Logfile of failure stored in: /home/user/zynqmp-hailo-ai/PetaLinux/zcu106/build/tmp/work/cortexa72-cortexa53-xilinx-linux/hailortcli/4.23.0-r0/temp/log.do_configure.2849196
ERROR: Task (/home/user/zynqmp-hailo-ai/PetaLinux/zcu106/project-spec/meta-user/meta-hailo/meta-hailo-libhailort/recipes-hailo/hailortcli/hailortcli_4.23.0.bb:do_configure) failed with exit code '1'
ERROR: libhailort-4.23.0-r0 do_configure: ExecutionError('/home/user/zynqmp-hailo-ai/PetaLinux/zcu106/build/tmp/work/cortexa72-cortexa53-xilinx-linux/libhailort/4.23.0-r0/temp/run.do_configure.2851680', 1, None, None)
ERROR: Logfile of failure stored in: /home/user/zynqmp-hailo-ai/PetaLinux/zcu106/build/tmp/work/cortexa72-cortexa53-xilinx-linux/libhailort/4.23.0-r0/temp/log.do_configure.2851680
ERROR: Task (/home/user/zynqmp-hailo-ai/PetaLinux/zcu106/project-spec/meta-user/meta-hailo/meta-hailo-libhailort/recipes-hailo/libhailort/libhailort_4.23.0.bb:do_configure) failed with exit code '1'

If you open one of the logfiles of those error messages, you will find error messages that are similar to the following:

Cloning into 'protobuf-src'...
fatal: unable to access 'https://github.com/protocolbuffers/protobuf.git/': error setting certificate file: /usr/local/oe-sdk-hardcoded-buildpath/sysroots/x86_64-petalinux-linux/etc/ssl/certs/ca-certificates.crt

Explanation:

In order to build the meta-hailo recipes, PetaLinux needs to clone some repositories. To do this, it requires a digital certificate that it expects to find at /usr/local/oe-sdk-hardcoded-buildpath/sysroots/x86_64-petalinux-linux/etc/ssl/certs/ca-certificates.crt. That path is an OpenEmbedded eSDK relocation placeholder that PetaLinux is meant to patch to the real location at install time, but on PetaLinux 2025.2 the relocation does not fully fire for the certificate path baked into git-native’s libcurl. This is a PetaLinux/eSDK packaging issue, not a Hailo or meta-hailo issue — a from-source Yocto build does not hit it.

Work-around:

Create a symbolic link from the expected path to the host’s system CA bundle so the missing file is resolvable:

sudo mkdir -p /usr/local/oe-sdk-hardcoded-buildpath/sysroots/x86_64-petalinux-linux/etc/ssl/certs/
sudo ln -s /etc/ssl/certs/ca-certificates.crt /usr/local/oe-sdk-hardcoded-buildpath/sysroots/x86_64-petalinux-linux/etc/ssl/certs/ca-certificates.crt

After running the above commands, re-run the build with ./build.sh clean --target <board> followed by ./build.sh petalinux --target <board> to discard the cached failure. PetaLinux/Makefile also runs a check_ca_workaround prerequisite target that fails fast with the same instructions if the symlink has not been applied yet.

Transient sstate fetch failures

If a ./build.sh petalinux --target <board> run ends with errors like

ERROR: <package>-<ver>-r0 do_..._setscene: Fetcher failure: Unable to find file file://.../sstate:...
[ERROR] Command bitbake petalinux-image-minimal failed

the actual build is not broken. These _setscene errors come from bitbake trying to pull prebuilt artifacts from the public Xilinx sstate-cache mirror, which occasionally returns 404 for individual packages. Bitbake falls back to building those packages locally and succeeds, but still exits non-zero because of the failed fetches — so the build runner stops before the petalinux-package step that produces BOOT.BIN. Re-run the same ./build.sh petalinux --target <board> command; the second attempt finds the missing packages in the local sstate cache populated by the first run and completes cleanly.
