Description

This project demonstrates multi-camera YOLOv5 accelerated by the Hailo-8 on the Zynq UltraScale+. The setup has 4x Raspberry Pi cameras and can run on a few different Zynq UltraScale+ development platforms. Cameras are connected to the Zynq UltraScale+ development boards via the Opsero RPi Camera FMC. The Hailo-8 AI accelerator connects to the development board via the FPGA Drive FMC Gen4 or the M.2 M-key Stack FMC depending on the target design (see list of target designs).

A detailed description of this example design has also been written in the blog post Multi-camera YOLOv5 on Zynq UltraScale+ with Hailo-8 AI Acceleration.

Hardware Platforms

The hardware designs provided in this reference are based on Vivado and support a range of MPSoC evaluation boards. The repository contains all necessary scripts and code to build these designs for the supported platforms listed below:

Zynq UltraScale+ platforms

Target board	FMC Slot Used	Cameras	Active M.2 Slots	VCU
ZCU104	LPC	4	1	✅
ZCU106	HPC0+HPC1	4	1	✅
ZCU106	HPC0	4	2	✅
PYNQ-ZU	LPC	2	1	❌
UltraZed-EV Carrier	HPC	4	2	✅

Software

These reference designs run embedded Linux, built either with PetaLinux or with the Yocto / EDF flow. The repository includes all necessary scripts and code to build both. The table below outlines the applications available in each environment:

Environment	Available Applications
PetaLinux	Built-in Linux commands Hailo: HailoRT 4.23.0 (hailortcli, pyhailort, hailo_pci driver), Hailo GStreamer elements Demo scripts: init_cams.sh, displaycams.sh, hailodemo.sh + YOLOv5m HEF Additional tools: GStreamer, v4l-utils, modetest, nvme-cli
Yocto / EDF	Same as PetaLinux, plus Wi-Fi station support on the PYNQ-ZU

Architecture

The hardware design for these projects is built in Vivado and is composed of IP that implement the MIPI interface with the cameras and VCU as well as a display pipeline. For interface with the Hailo AI accelerator, the designs contain the XDMA IP, configured as a PCIe root port. The main elements are:

• 4x Raspberry Pi cameras each with an independent MIPI capture pipeline that writes to the DDR (2x on the pynqzu target)

• Video Mixer based display pipeline that writes to the DisplayPort live interface of the ZynqMP, at 1920x1080 and 60 Hz

• One or two PCIe root ports (XDMA in AXI Bridge mode) to the M.2 slots of the FMC card, Gen3 x1 or x4 depending on the target

• Video Codec Unit (VCU), on the targets whose device has one

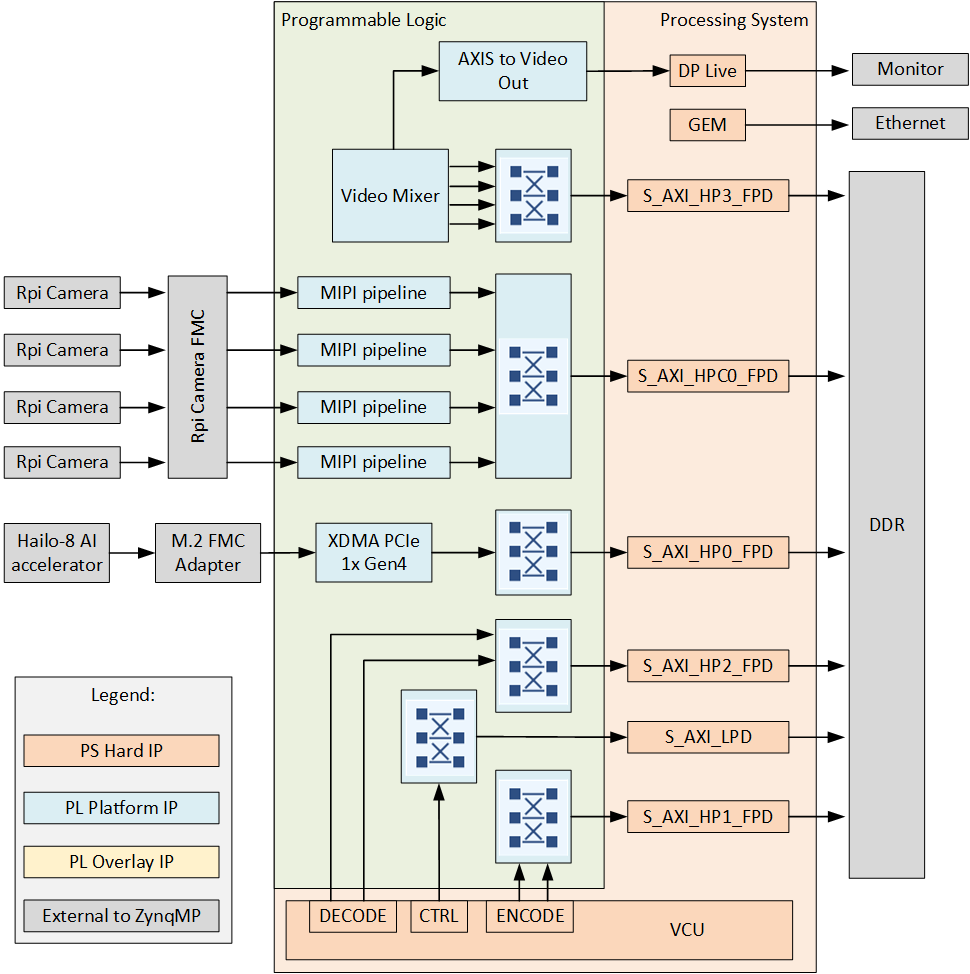

The block diagram below illustrates the design from the top level. The blocks drawn with a dashed border exist only on some targets.

The diagrams on this page are generated by docs/source/images/gen_block_diagram.py from the facts in Vivado/src/bd/bd_zynqmp.tcl.

Capture pipeline

There are four main capture/input pipelines in this design, one for each of the 4x Raspberry Pi cameras. The capture pipelines are composed of the following IP, implemented in the PL of the Zynq UltraScale+:

• MIPI CSI-2 Receiver Subsystem IP

• AXI4-Stream Data FIFO

• ISP Pipeline of the Vitis Libraries

• Video Processing Subsystem IP

• Frame Buffer Write IP

The MIPI CSI-2 RX IP is the front of the pipeline and receives image frames from the Raspberry Pi camera over the 2-lane MIPI interface. The MIPI IP generates an AXI-Streaming output of the frames in RAW10 format. The ISP Pipeline IP performs BPC (Bad Pixel Correction), gain control, demosaicing, auto white balance and gamma correction, to output the image frames in RGB888 format. The Video Processing Subsystem IP performs scaling and color space conversion (when needed). The Frame Buffer Write IP then writes the frame data to memory (DDR). The image below illustrates the MIPI pipeline.

The ISP settings (per-channel gamma, gains, white-balance threshold) are V4L2 controls of the ISP sub-device and can be changed at runtime; see Fine-tune the camera picture.

Display pipeline

The Video Mixer reads up to four camera layers (YUYV), one RGBA overlay layer with alpha and an NV16 primary layer from DDR, scales and blends them, and streams the result as 8-bit YUV 4:2:2 to the DisplayPort live video input of the Zynq UltraScale+ PS. A Video Timing Controller generates the 1080p timing, and a Clocking Wizard with dynamic reconfiguration produces the pixel clock. The Linux DRM driver of the Video Mixer sets the mode; the Clocking Wizard then runs at 148.5 MHz for 1920x1080 at 60 Hz. The display pipeline of this design supports that mode only, and the demo scripts select it explicitly.

PCIe interface to the M.2 slots

Each M.2 slot that a target uses is driven by its own instance of the DMA/Bridge Subsystem for PCI Express (XDMA), configured as a root port in AXI Bridge mode, with a maximum link speed of Gen3 (8 GT/s). The GT lanes come from the FMC connector, so the link width depends on how many GT lanes the connector carries:

• zcu104 and pynqzu (LPC) and zcu106 (HPC1 with the FPGA Drive FMC Gen4) carry one GT lane to the M.2 adapter: one root port, Gen3 x1, M.2 slot 1 only. On zcu106 the second M.2 slot of the FPGA Drive FMC Gen4 is not connected and cannot be used.

• zcu106_hpc0 and uzev (HPC) carry enough GT lanes for two x4 links: two root ports, Gen3 x4 each. Slot 1 holds the Hailo-8; slot 2 can take a second Hailo-8 or an NVMe SSD.

The Hailo-8 runs the bundled YOLOv5m network at about 150 FPS on both link widths: the module’s compute, not the PCIe link, sets the rate.

PCIe address map

The PS reaches the PCIe devices through the AXI BAR window of each root port, on the M_AXI_HPM1_FPD port. The window is placed in the 32-bit address space at 0xB000_0000 (256 MB; 128 MB per root port on the targets with two root ports) and maps 1:1 to the same PCIe address. The Linux device tree then describes it as a 32-bit non-prefetchable memory window. This matters for NVMe SSDs: their BAR0 is a non-prefetchable memory BAR, which a PCIe bridge can only place in a non-prefetchable window below 4 GB. With a window above 4 GB (as in earlier versions of this design) an SSD in the second M.2 slot trained its link but could not be enumerated. The Hailo-8 has only prefetchable BARs and works with either. Bus-master traffic from the root ports (the DMA of the Hailo-8 or SSD into DDR) enters the PS on S_AXI_HP0_FPD.

End-to-end pipeline

The end-to-end pipeline shows the flow of image frames through the Hailo demo (hailodemo.sh), from the camera to the monitor, with the resolution and pixel format at each interface. The resolution and pixel format can be changed at the output of the RPi camera and of the scaler (Video Processing Subsystem IP).

Video Codec Unit

For some of the target boards, the Zynq UltraScale+ device contains a hardened Video Codec Unit (VCU) that can be used to perform video encoding and decoding of multiple video standards. On those target designs, we have included the VCU to enable these powerful features. Refer to the list of target designs to see which boards support this feature.
